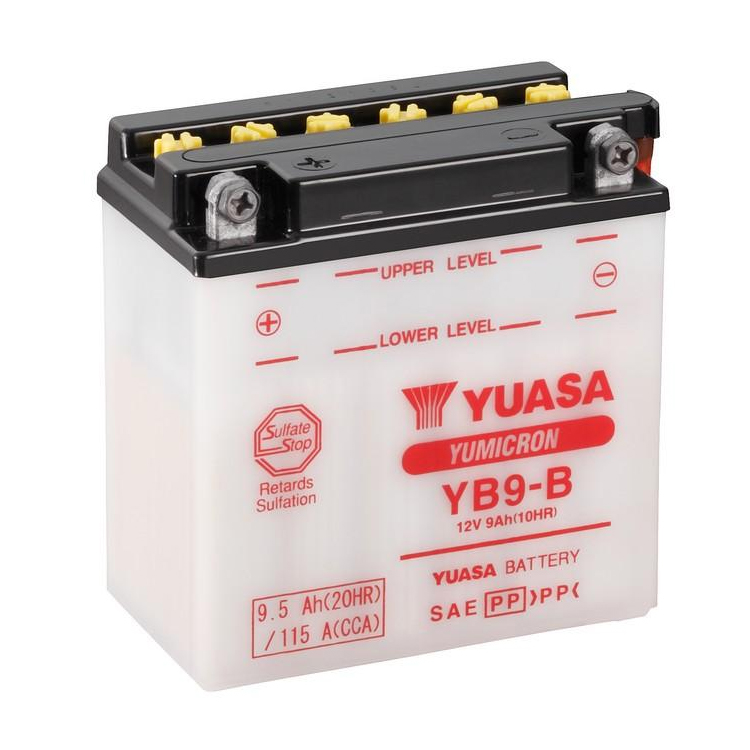

Yuasa YB9-B (CP) 12V Combi-Pack YuMicron Battery

This battery is supplied with a combi-pack containing acid.

Yumicron

Personal watercraft, snowmobiles and ATVs make special demands – and YUASA’s YuMicron Battery meets them headon. The high-tech, power-boosting design also makes YuMicron ideal for accessory-laden touring bikes and modified vehicles.

• Heavy duty glass mat resists vibration damage
• Special thin Separator packs in extra plates, delivers up to 30% more cranking power than conventional types
• Through-the-wall intercell connector minimises internal resistance, maximises power
• Sulphate Stop curbs plate sulphation – and provides longer life

Installation:

Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.

Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use.

Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office

Manufacturer Part No. (MPN): YB9-B(CP)
Barcode: 5050694030673
